Features

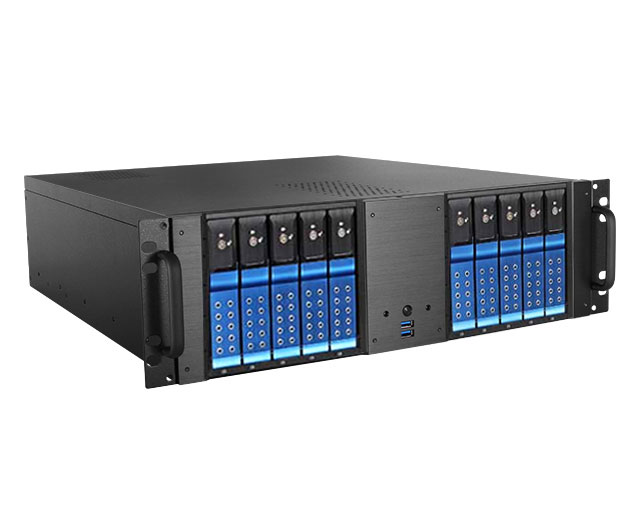

10 trayless and hotswappable 3.5" bays for HDD quick swap
Supports standard ATX power supplies
Compatible with redundant power supplies
USB 3.0 in front for easy access
Sleek aluminum front w/ various color options for HDD handles
Rackmount or desktop convertible
Supports 6.0 Gb/s hard drives
Product Introduction
The D-230HN-T, D-340HN-T, D-350HN-T, D-260HN, D-380HN, and D-3100HN series are designed with elegance and functionality fit for Home Theater Personal Computer (HTPC). With the advancement of server racks for home, these models are ideal for both rackmount and desktop orientation. With storage capacity up to 4TB per each bay, the tray-less drive cage maximizes data storage and backup functionality at the same time.
Specifications
Model Number : D-3100HN
RoHS Compliance Version : Yes
Form factor : 3 U
Standard Drive Bays
3.5" Drive (internal) : 1
Hotswap 3.5" : 10
Hotswap HDD Type : 3.5" SAS I/II & SATA I/II/III
Indicators : Power, HDD
Switches : Power
Expansion Slots : 4
Material of Front Bezel and Handle : Aluminum
Material of Main Chassis : SGCC 0.8mm
Color of Main Chassis : Black
Front Connector : 2x USB 3.0
Motherboard Size : 12 x 9.6 (ATX, microATX)
Cooling Fan : 2x80mm
Optional Fan : 80mm x1
Ordering Information
Black HDD Handle : D-3100HN
Blue HDD Handle : D-3100HN-BLUE
Red HDD Handle : D-3100HN-RED
Silver HDD Handle : D-3100HN-SILVER
Dimensions (WxHxD) : 18.98" x 5.22" x 20.43"
Notes- the first three expansion slots cannot be used if using a standard ATX motherboard.
UPC # : 846813035569
|
