Product Data Sheet

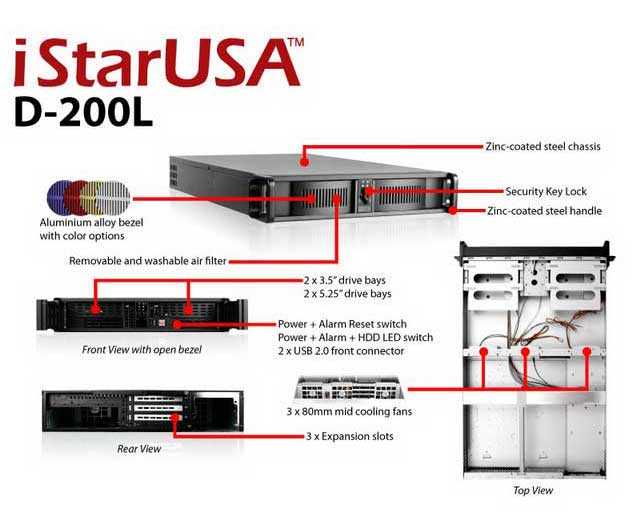

Features
- Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5

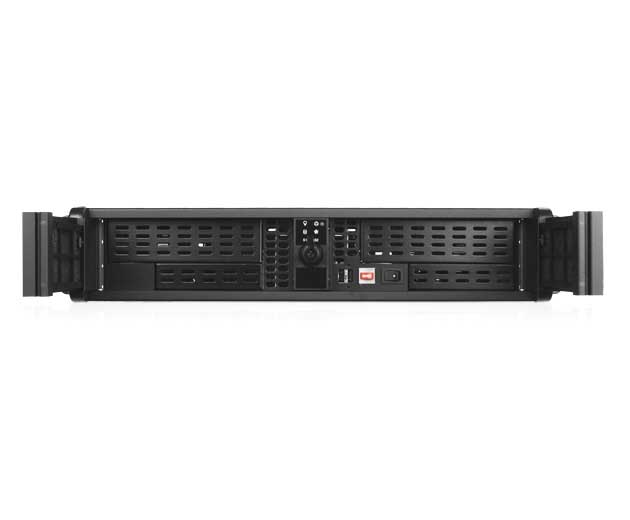

- Front Access USB2.0 x2

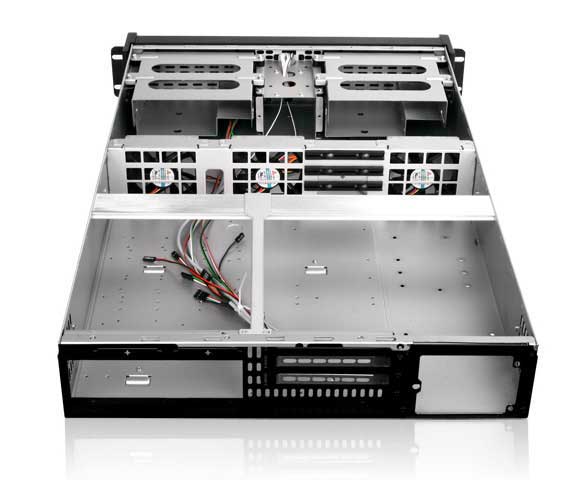

- 80mm x3 cooling fan
- Support Extend-ATX Motherboard
- Removable Air Filter
- Power and HDD LED
- Power and Alarm Reset Switch
Product Introduction

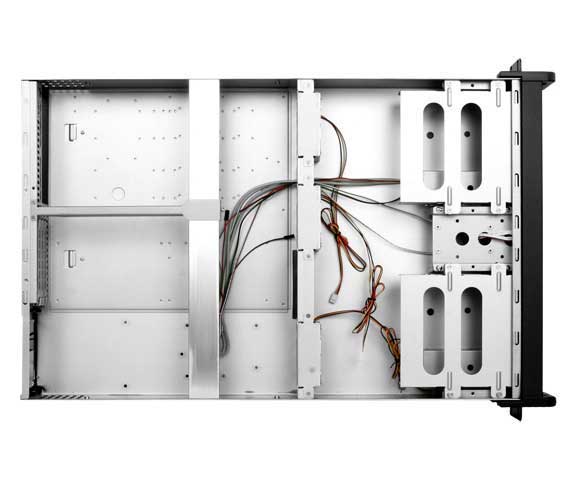

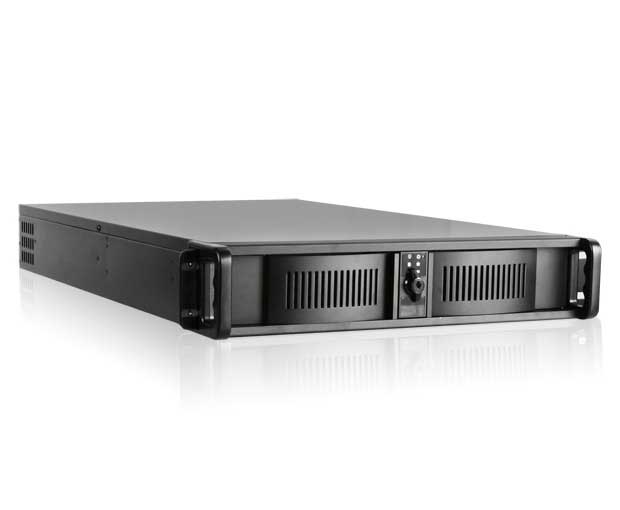

The 2U compact industrial rackmount chassis D Storm D-200L. The full size I/O supports all ATX motherboard. Combine hot-swappable cage for RAID configuration, and total up to 4 drive storage capacity. D-200L support 3 add-on cards include PCI, PCI-X, AGP, or PCI-Express architecture that provide your server or cluster maximum flexibility and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution.
Specification
Model Number : D-200L
RoHS Compliance Version : Yes
Standard Drive Bays :
- 3.5" Drives: 2
- 5.25" Drives: 2
Indicators : Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
Switches : Power, Reset
Supported PSU Type : 2U

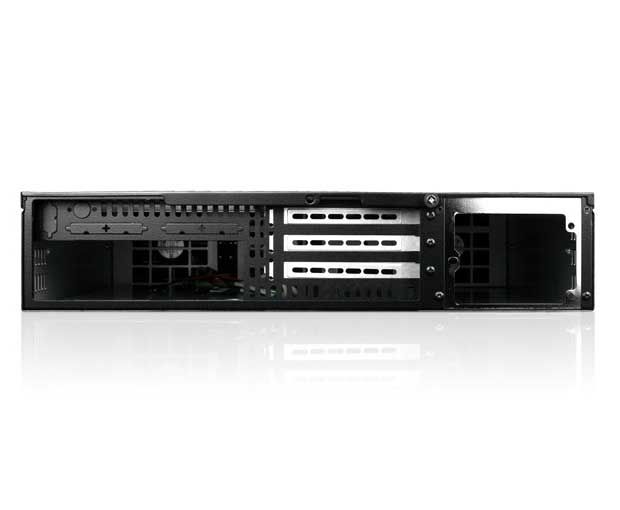

Expansion Slots : 3
Security : Front Bezel Key Lock
Material of Front Bezel : Aluminum alloy
Material of Handle : SECC Zinc-Coated Steel
Material of Main Chassis : 1.2mm SECC Zinc-Coated Steel ( Japan Made )
Color of Front Bezel : Black
Color of Main Chassis : Black
Front Connector : 2x USB 2.0
Air Filter : Removable & Washable
Motherboard Size : 12 x 13 (EATX, ATX, microATX)
Cooling Fan : 3x80mm
Ordering Information (Part Number)
- Black Bezel:D-200L
- with 400W Redundant PSU:D200L-24R-40R2U
- with 460W Redundant PSU:D200L-24R-46R2U
Dimensions (WxHxD) : 19.00" x 3.50" x 27.90" (482.6 mm x 88.9 mm x 708.7 mm)
Notes : Please contact sales person for low profile backplate option.
|
