iStarUSA D-118V2-ITX 1U Compact Rackmount mini-ITX Chassis (Power Supply Not Included) (D-118V2-ITX)

Istore > Networking > Server Case / Rackmount Chassis > iStarUSA D-118V2-ITX 1U Compact Rackmount mini-ITX Chassis (Power Supply Not Included)

(Click picture to enlarge)

We do our best to ensure accuracy of this product's picture and information. We will ship products based on the product name and model number.

iStarUSA D-118V2-ITX 1U Compact Rackmount mini-ITX Chassis (Power Supply Not Included)

SKU #: 136199

Model #: D-118V2-ITX
Product #: ISTA144

List Price:$86.10
Our Price: $63.67
You Save: $22.43

Alternate View (Click picture to enlarge)

Description

Features
- Industrial Chassis with 11" in Depth
- Supports Front Access USB2.0 x2
- Power, HDD, and LAN LEDs
- Power and Reset Switch
- Supports mini-ITX Motherboard
- Supports 1U Flex Power Supply

Product Introduction
D-118V2-ITX is a reliable and stable 1U-high 11" depth industrial computer chassis. This chassis supports either one 3.5" or two 2.5" hard drive with a mini-ITX motherboard. D-118-ITX supports a 1U flex power supply to meet regular system applications and optional 40mm cooling fans can be installed at front for air ventilation.

Specification
Model Number : D-118V2-ITX
RoHS Compliance Version : Yes
Standard Drive Bays : 2.5" Drive (internal) x 2
Indicators : Power, HDD, LAN
Switches : Power, Reset
Supported PSU Type : 1U Flex
Expansion Slots : 1
Material of Front Bezel : Aluminum
Material of Main Chassis : Steel
Color of Front Bezel : Black
Color of Main Chassis : Black
Front Connector : 2x USB 2.0
Motherboard Size : 6.7 x 6.7 (mini-ITX)
Optional Fan : 40mm x3

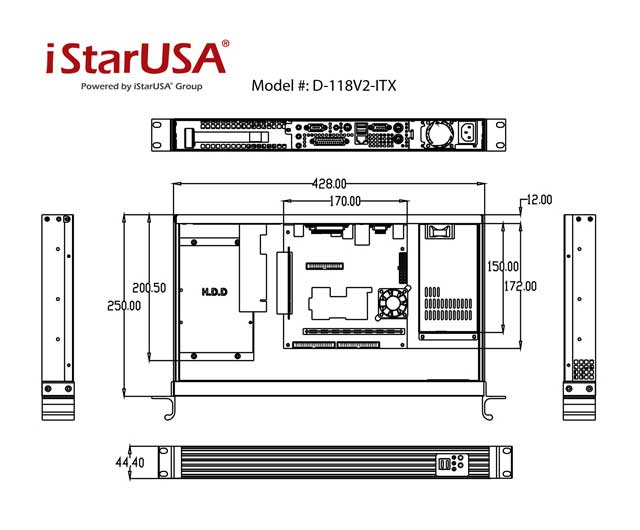

Dimensions (WxHxD) : 19.00" x 1.75" x 11.00" (482.6 mm x 44.4 mm x 279.4 mm)
Notes :
- 1. 3.5" hdd cannot be placed when expansion slot is used.
- 2. Standard I/O shield will NOT fit any 1U chassis.
- 3. wall-mounted bracket, BTC-118-WALL, will only work with new version of this chassis with mounting holes on sides.
- 4. for PCI riser, use DD-611-C5 (search for DD-611-CX).
- 5. for PCIe x16 riser, use DD-666-C5 (search for DD-666-CX).
