Product Data Sheet
Features
- Fiber Optical Drive Tray Status Indicator
- Advance Thermal Cooling Design Optimizes Airflow
- 3 Cooling Fans with Status Monitor
- Support EATX Motherboard
- Mini SAS Backplane
- Front Access USB Connector
- Power + Fan Failure + HDD LED Indicator
- Power/Alarm Reset Switch
- Fully RoHS Compliance
Product Introduction
The E storage server series rackmount not only has the stylish appearance, but the functionality and flexibility make E series a new breed of storage server. As SAS and SATA technology has become a more cost effective solution, we have taken a step forward to prepare the migration of new technology and provide the mini SAS backplane to support both latest SAS and SATA hard drives, and also provide redundant power supply to ensure total up time of mission critical server applications.
Specification

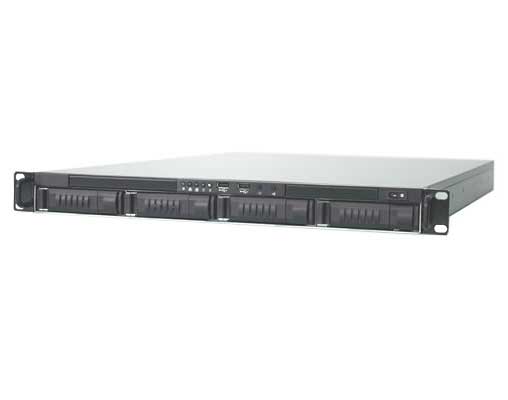

Model Number : E1M4
RoHS Compliance Version : Yes

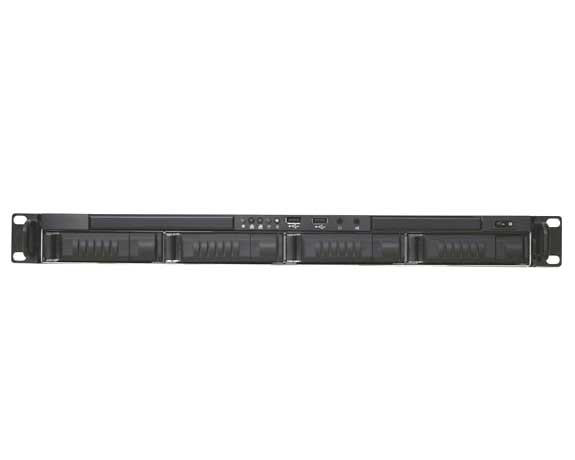

Standard Drive Bays :
- 2.5" Drive (internal): 1
- Hotswap 3.5: 4
- Slim 5.25" Optical: 1
- Slim 3.5" FDD: 1
Hotswap HDD Type : 3.5" SAS I/II & SATA I/II/III
Indicators : Power + Fan Failure + HDD LED
Switches : Power On/Off, Reset, Mute
Expansion Slots : 1
Material of Front Bezel : Texture-Coated
Material of Handle : Aluminum
Material of Main Chassis : Heavy-duty SGCC Cold-rolled Steel
Color of Main Chassis : Silver
Front Connector : 2x USB 2.0
Motherboard Size : 12 x 13 (E-ATX, ATX, micro-ATX)
Cooling Fan : 4x40mm
Dimensions (WxHxD) : 19.00" x 1.75" x 27.00" (482.6 mm x 44.4 mm x 685.8 mm)
Notes :
- 1. Standard I/O shield will NOT fit any 1U chassis.
- 2. for PCI riser, use DD-611-C5 (search for DD-611-CX).
- 3. for PCIe x16 riser, use DD-666-C5 (search for DD-666-CX).
|
