iStarUSA 3x5.25" to 5x3.5" SAS/SATA 6.0 Gb/s Hot-Swap Cage - Silver (BPU-350SATA-SILVER)

Istore > Networking > Direct-Attached Storage (DAS) > iStarUSA 3x5.25" to 5x3.5" SAS/SATA 6.0 Gb/s Hot-Swap Cage - Silver

(Click picture to enlarge)

We do our best to ensure accuracy of this product's picture and information. We will ship products based on the product name and model number.

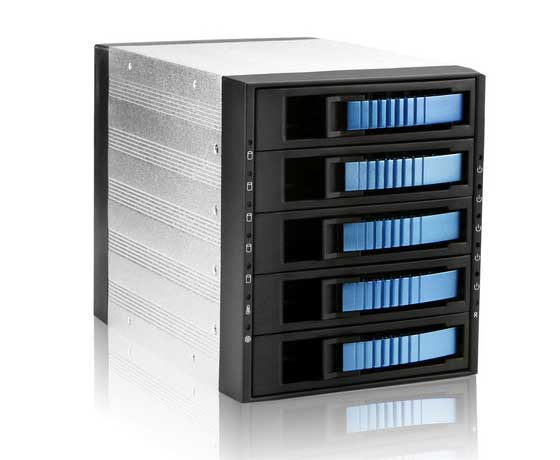

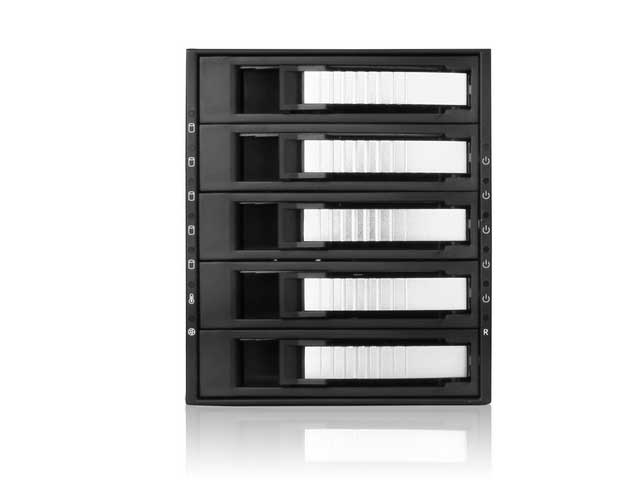

iStarUSA 3x5.25" to 5x3.5" SAS/SATA 6.0 Gb/s Hot-Swap Cage - Silver

SKU #: 136138

Model #: BPU-350SATA-SILVER
Product #: SSBP027

List Price:$156.59
Our Price: $137.40
You Save: $19.19

Alternate View (Click picture to enlarge)

Description

Product Data Sheet

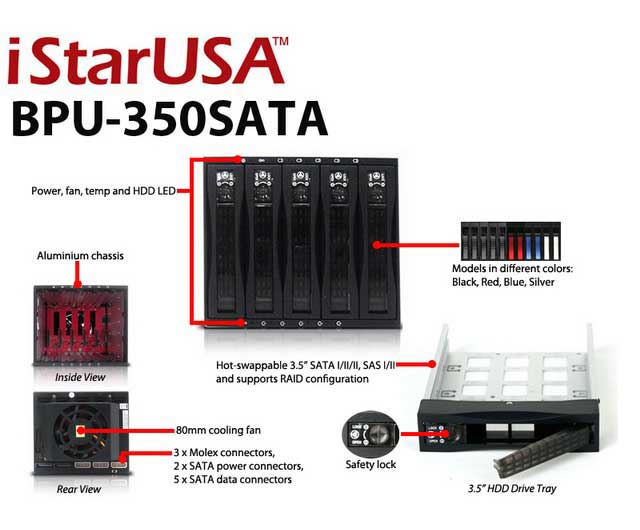

Features
- Stylish aluminum color handle and heat-sink body
- Support Hot-Swap & RAID Configuration (need an additional RAID controller)
- Aluminum Design with Conductive Dissipation Grooves
- Power, fan and high temperature LED indicators
- Super Air Ventilation & Heat Sink with 80mm Fan
- High Performance Transfer Rate up to 6.0 Gb/s
- Support 3.5" SAS I/II & SATA I/II/III HDDs

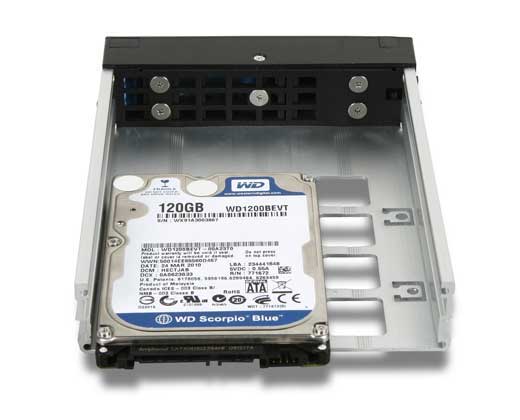

- Support 2.5" SAS I/II & SATA I/II/III HDDs
- Equipped with Fan Speed Control Switch
- 3TB Hard Drives Compatible

Product Introduction
High level RAID and high availability storage in compact design, BPU-350SATA series adds extra storage and hot-swap capability to satisfy any application needs. The BPU-350SATA is constructed of aluminum material that provides best heat dissipation required for high performance SAS/SATA drives. It is designed with excellent front to back vent airflow. The BPU-350SATA is an ideal solution for internal server RAID and JBOD applications. Aluminum body and extra 80mm cooling fan subsystem complete a high end data storage server or workstation.

Specification
Model Number : BPU-350SATA
RoHS Compliance Version : Yes
Standard Drive Bays :
- 5.25" Drives: 3
- Hotswap 3.5: 5
Hotswap HDD Type : 3.5" SAS I/II & SATA I/II/III
Indicators : Power, HDD, fan, and high temperature
Material of Front Bezel : Aluminum
Material of Handle : Aluminum

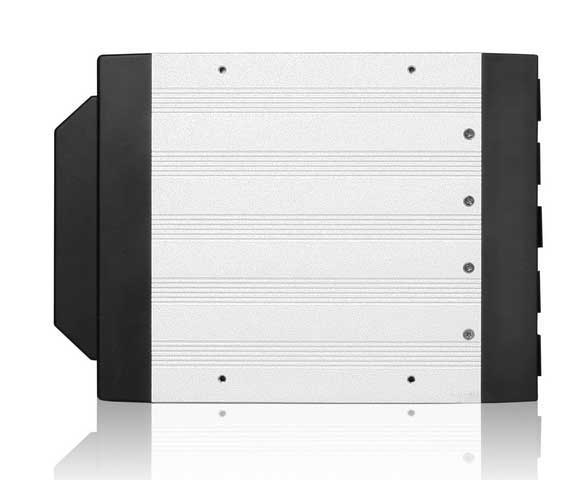

Material of Main Chassis : Aluminum Design with Conductive Dissipation Grooves
Color of Front Bezel : Black/ Blue/ Red/ Silver
Color of Main Chassis : Black
Package Conten : SATA Cable Included (4pcs)

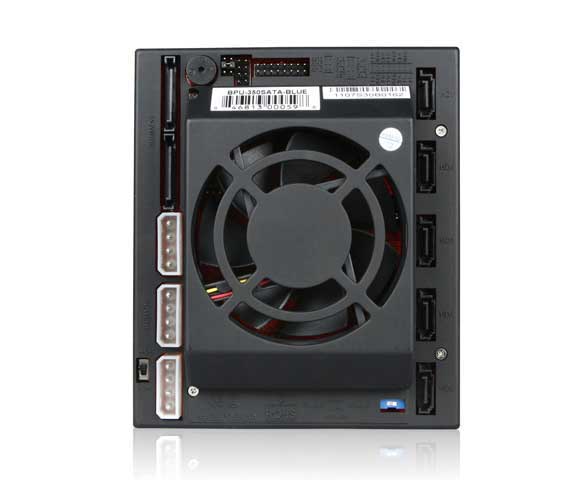

Cooling Fan : 1x80mm
Ordering Information (Part Number)
- Black Tray:BPU-350SATA-BLACK
- Blue Tray:BPU-350SATA-BLUE
- Red Tray:BPU-350SATA-RED
- Silver Tray:BPU-350SATA-SILVER
- Lockable Tray:BPU-350SATA-BPL
Dimensions (WxHxD) : 5.75" x 4.96" x 8.11" (146.0 mm x 126.0 mm x 206.0 mm)
