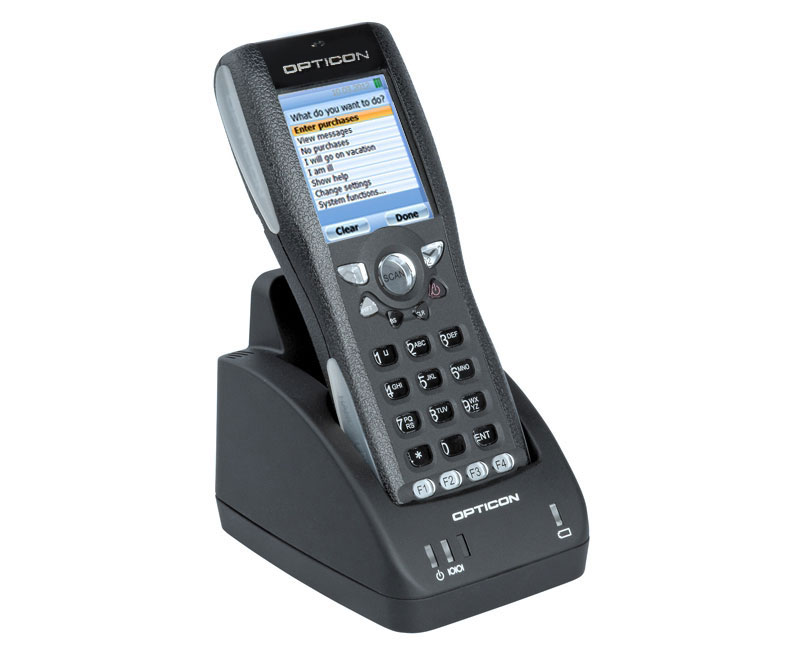

Opticon OPH1005 Mobile Computer KIT, 1D LASER, Includes RS232/USB CRADLE, POWER SUPPLY
SKU #: 154153
Model #: OPH-1005-SK1
Product #: BCSC403
List Price:$640.00
Our Price: $526.67
You Save: $113.33
|
Description
|
Batch Mobile Computer, 1D Laser Scanner, 2MB RAM/64 MB Internal Micro SD, 23 key Phone-Style keypad, Color Non-Touch Screen. Includes battery, Ethernet/USB charging cradle, and power supply.
Highlights include:
Portable laser barcode scanner ¡V 100 scans/second
Compact size and weight
Batch scanner - stores data for later transfer via IrDA through a charging cradle (sold separately)
Offers graphical color LCD with adjustable backlight
Withstands drop of 1.5 meters to concrete
Features rugged IP54 rating ¡V comprehensive sealing against dust and moisture
Two-year warranty
Memory
FlashROM : 4 MB
NAND Flash : 128 MB
RAM : 4 MB SRAM
Operation
CPU : RX62N 32-bit MCU
O/S : Proprietary
Software : Programmable in C-language. Software development kit with WinARM compiler free downloadable
RTC : Supports year, month, day, hour, minute, second (leap year supported)
Display
Size : 320 x 240 pixels
Operating indicators
Visual : Dual-color LED
Non-visual : Buzzer
Operating keys
Entry options : 23 keys total, 12 key (alpha)numeric keypad, 2 navigation keys, 4 function keys, 3 control keys, 1 power key, 2 hot keys, 1 scan key
Communication
IrDA : Ver. 1.2, baudrate 1200 bps - 115.2 kbps
Power
Rechargeable battery : Lithium-Ion 3.7V 1100 mAh
Operating time : Ca. 40 hours (backlight off, 1 scan / 10 sec)
Data retention time : 24 hours
Charging method : Separate cradle CRD1001, CRD1002, CRD1003, CRD1004
Physical
Dimensions (w x h x d) : 55 x 136 x 23 mm / 2.17 x 5.35 x 0.91 in
|
|
|
|
