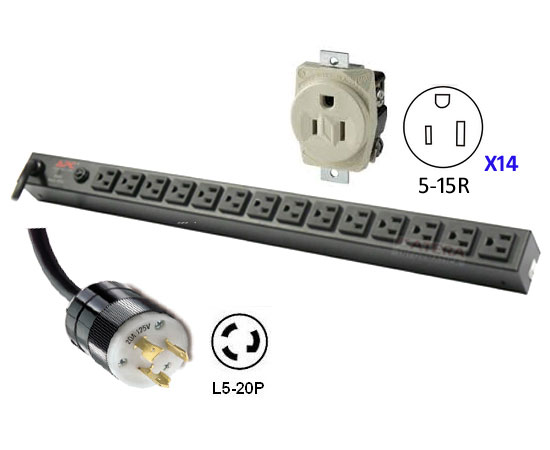

APC Basic Rack 2400VA PDU - 2400VA - Zero U, Rack-mountable - INPUT: NEMA L5-20P, OUTPUT: 14 x NEMA 5-15R (AP9551)

Istore > IT Product > Power Distribution Unit (PDU) > APC Basic Rack 2400VA PDU - 2400VA - Zero U, Rack-mountable - INPUT: NEMA L5-20P, OUTPUT: 14 x NEMA 5-15R

(Click picture to enlarge)

We do our best to ensure accuracy of this product's picture and information. We will ship products based on the product name and model number.

APC Basic Rack 2400VA PDU - 2400VA - Zero U, Rack-mountable - INPUT: NEMA L5-20P, OUTPUT: 14 x NEMA 5-15R

SKU #: 156091

Model #: AP9551
Product #: SHPD535

Our Price:$231.35

Description

Brand Name: APC
Manufacturer: American Power Conversion Corp
Manufacturer Part Number: AP9551

Product Line: Basic Rack
Product Name: Basic Rack 2400VA PDU
Product Type: PDU

Package Contents:
*Basic Rack 2400VA PDU
*Rack Mounting Brackets
*User Manual

Physical Characteristics
Color: Black
Form Factor: Rack-mountable
Depth: 1.8"
Height: 24.4"
Width: 1.8"

Power Description
Input Voltage: 120 V AC, 132 V AC
Output Voltage: 120 V AC
Power Rating: 2.40 kVA

Technical Information
Input Receptacles: NEMA L5-20P
Output Receptacles: 14 x NEMA 5-15R
Protection Type: Overload Protection

Output
Nominal Output Voltage : 120V
Overload Protection : Yes
Maximum Total Current Draw : 20
Output Connections : (14) NEMA 5-15R (Battery Backup)

Input
Nominal Input Voltage : 100V , 120V
Input frequency : 50/60 Hz
Input Connections : NEMA L5-20P
Cord Length : 12 ft ( 3.66 meters )
Acceptable Input Voltage : 90-132 VAC
Load Capacity : 2400 VA
Maximum Input Current : 20 A
Maximum Line Current : 20 A
Regulatory Derated Input Current (North America) : 16 A

Warranty
Limited Warranty: 2 Year
Parts Warranty/Labor: 2 Year

UPC#: 731304021247
