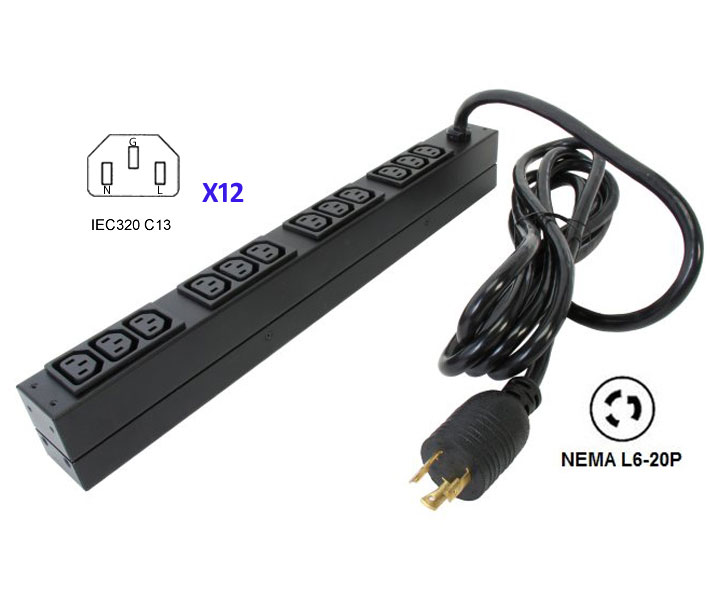

APC Basic Rack 3.328kVA PDU - 3.33kVA - 1U Rack-mountable - INPUT: NEMA L6-20P, OUtPUT: 12 x IEC 320-C13 (AP9566)

Istore > IT Product > Power Distribution Unit (PDU) > APC Basic Rack 3.328kVA PDU - 3.33kVA - 1U Rack-mountable - INPUT: NEMA L6-20P, OUtPUT: 12 x IEC 320-C13

(Click picture to enlarge)

We do our best to ensure accuracy of this product's picture and information. We will ship products based on the product name and model number.

APC Basic Rack 3.328kVA PDU - 3.33kVA - 1U Rack-mountable - INPUT: NEMA L6-20P, OUtPUT: 12 x IEC 320-C13

SKU #: 156058

Model #: AP9566
Product #: SHPD502

List Price:$216.12
Our Price: $195.38
You Save: $20.74

Description

Brand Name: APC
Manufacturer: American Power Conversion Corp
Manufacturer Part Number: AP9566

Marketing Information:
Basic Rack 3.328kVA PDU which allow users to distribute power outlets to rack-mount equipment. APC now offers Basic Rack PDU that mount veritcally, without tools in the rear channel of a NetShelter VX.

Product Line: Basic Rack
Product Name: Basic Rack 3.328kVA PDU
Product Type: PDU

Package Contents:
*Basic Rack 3.328kVA PDU
*Installation Guide
*Rack Mounting Brackets

Physical Characteristics
Color: Black
Rack Height: 1U
Form Factor: Rack-mountable
Depth: 2.3"
Height: 1.8"
Width: 17.6"

Power Description
Input Voltage: 208 V AC
Output Voltage: 208 V AC
Power Rating: 3.33 kVA

Technical Information
Input Receptacles: NEMA L6-20P
Output Receptacles: 12 x IEC 320-C13

Output
Nominal Output Voltage : 208V
Maximum Total Current Draw : 16
Output Connections : (12) IEC 320 C13 (Battery Backup)

Input
Nominal Input Voltage : 200V , 208V , 230V
Input frequency : 50/60 Hz
Input Connections : NEMA L6-20P
Cord Length : 12 ft ( 3.66 meters )
Load Capacity : 3328 VA
Maximum Input Current : 20 A
Regulatory Derated Input Current (North America) : 16 A

Warranty
Limited Warranty: 2 Year
Parts Warranty/Labor: 2 Year

UPC#: 731304213048
