iStarUSA 8 Ports Fan Sensor Board (TC-ISF08)

Istore > Networking > Chassis/Cabinet Accessory > iStarUSA 8 Ports Fan Sensor Board

(Click picture to enlarge)

We do our best to ensure accuracy of this product's picture and information. We will ship products based on the product name and model number.

iStarUSA 8 Ports Fan Sensor Board

SKU #: 121562

Model #: TC-ISF08
Product #: RMAC022

List Price:$42.08
Our Price: $18.46
You Save: $23.62

Alternate View (Click picture to enlarge)

Description

Features
- Simple to Use and Very Compact in Size
- Built-in alarm
- Status Out, Jumpers I/O
- 2 Temperature Sensor

Product Introduction

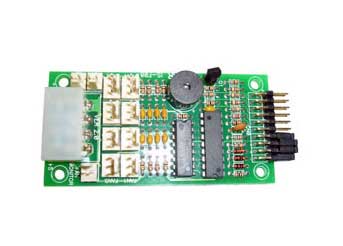

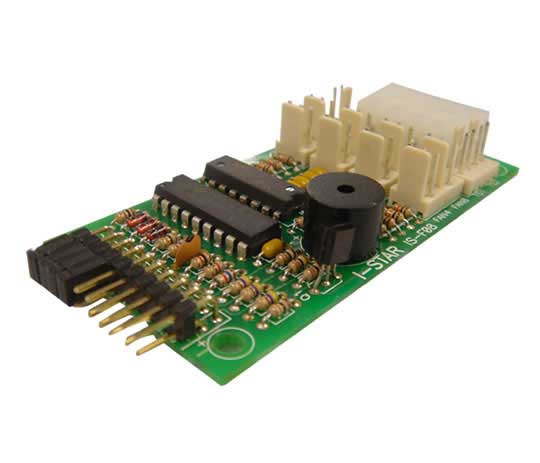

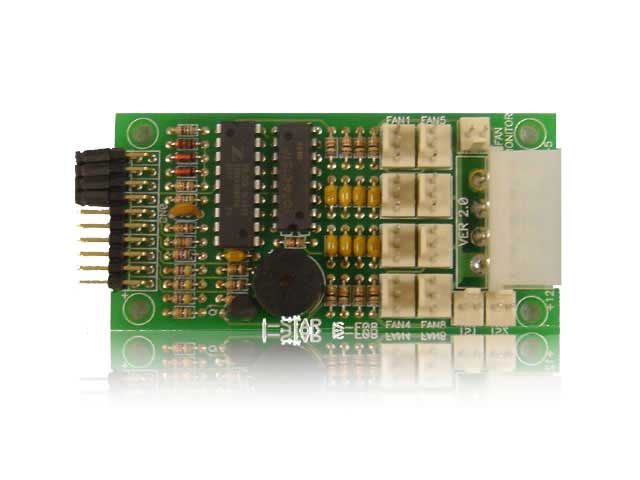

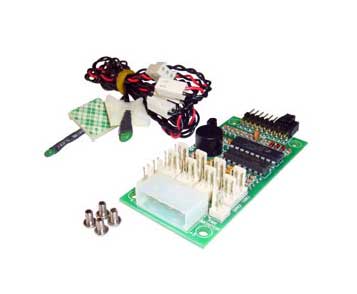

The TC-ISF08 monitoring board allows PC systems to monitor temperature at two separate locations, it derives power via one Molex connector, supports up to 8 fans. A summarized output via a 2-pin fan output line allows your motherboard or add-on card to monitor for any fan failures using just one fan monitoring port. An LED connector lets you visually monitor for temperature or fan failures. The two temperature sensors may be placed at critical points in the system. Selectable jumpers allow the thermal alarm level to be set at 50, 60, or 70 °C. An alarm reset switch lets you silence alarms until repairs can be made. TC-ISF08 is a great accessory board for any system where temperature is critical.

Specifications
Model Number : TC-ISF08
RoHS Compliance Version : Yes
Standard Drive Bays : None
Front Connector : Fan Connector 8 x 3-pin
Dimensions (WxHxD) : 3.00" x 2.00" x 1.00" (76.2 mm x 50.8 mm x 25.4 mm)
